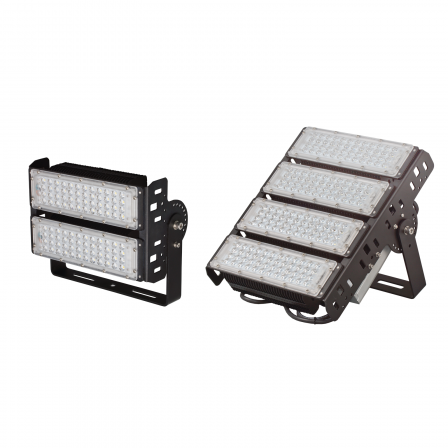

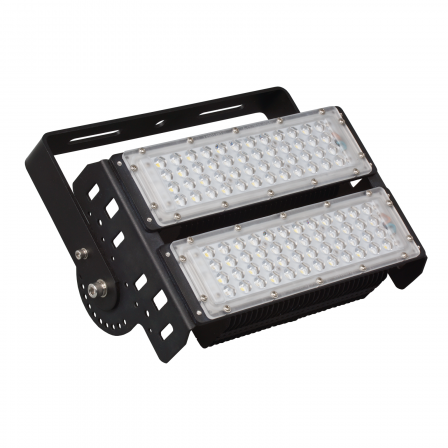

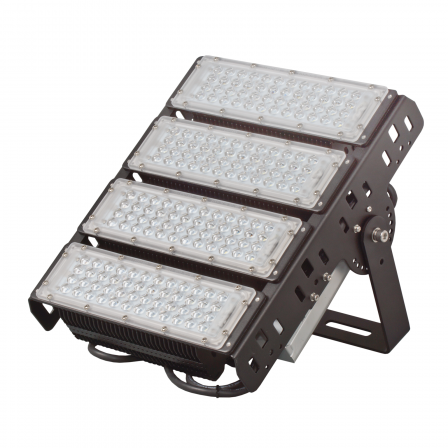

The LED spotlight housing is a highly efficient, low-profile cooling element designed for passive cooling. The LED lights FA 100 flex and FA 200 flex are equipped with individual LEDs in white and blue. Both colours can be dimmed separately. For optimum light spread, a special lens plate with individual lenses for each LED is installed. The Meanwell ballast guarantees for a reliable and safe power supply. The light consists of individual LEDs with a respective viewing angle of 60° per LED. By an optional manual dimming both light channels can be adjusted optimal to the individual needs.
A holder for the ceiling is included.
Optional:
– Potentiometer
– Qube control
| Type | LED FA 100 flex | LED FA 200 flex |
| Dimensions (l x w x h) without holder: |
290 x 180 x 130 mm | 360 x 290 x 160 mm |
| Weight: | app. 4.2 kg | app. 7.1 kg |
| Total luminous flux: | app. 6,700 lm | app. 13,500 lm |
| Light colour: | white: 8100 K blue: 455 nm |
white: 8100 K blue: 455 nm |
| Total viewing angle: | app. 60° | app. 60° |
| Viewing angle per LED: | app. 60° | app. 60° |
| Power supply: | 100-240 V / 50-60 Hz | 100-240 V / 50-60 Hz |
| Total LEDs: | 96 pcs. | 192 pcs. |
| LEDs per colour: | 48 x white 48 x blue |
96 x white 96 x blue |
