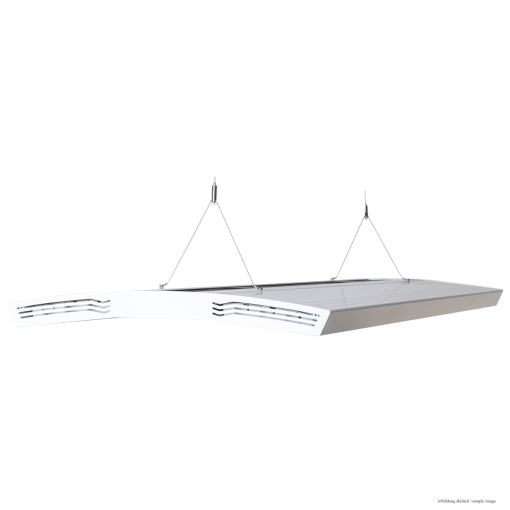

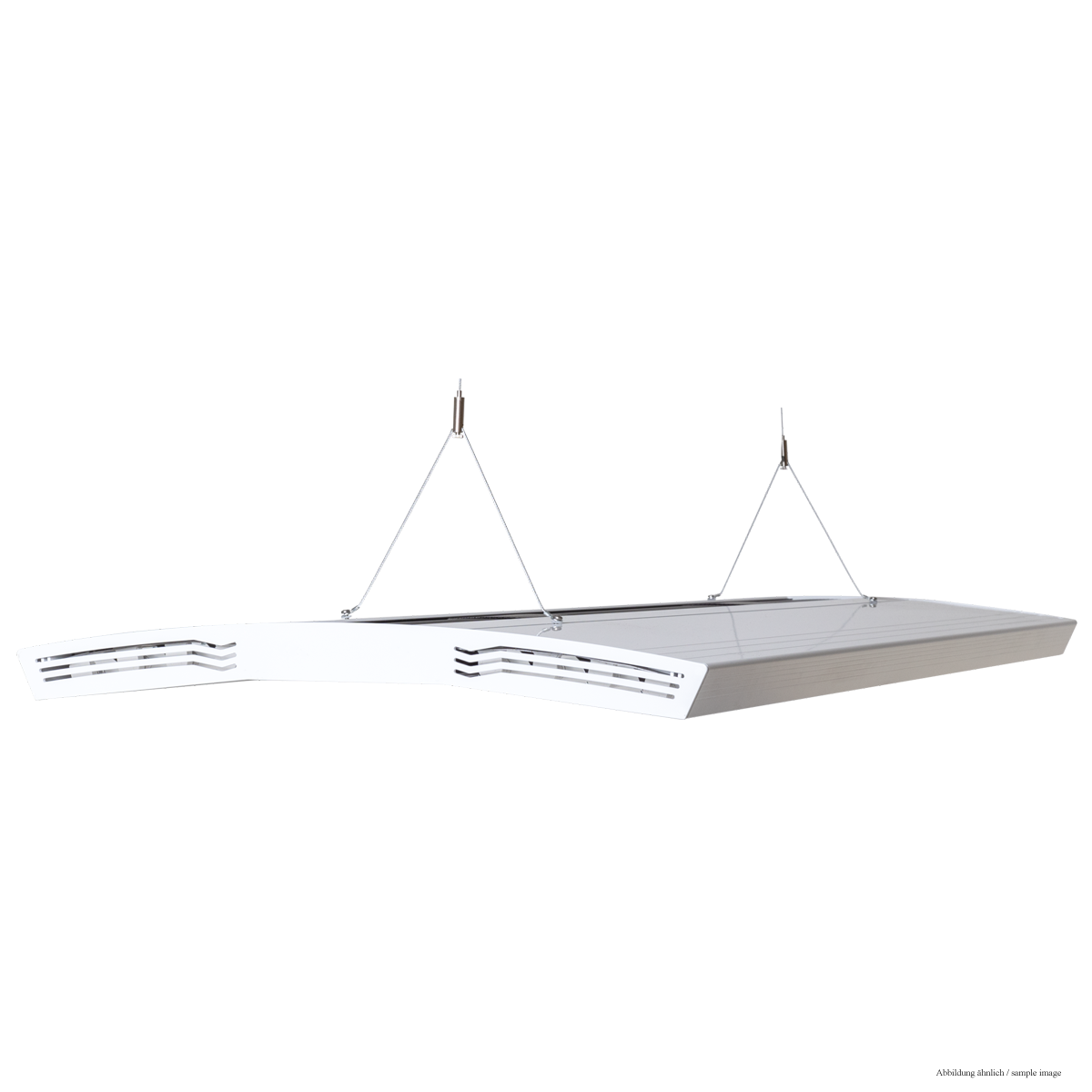

Product information “Aurora V8”
Performance meets Design
The new generation of this high-end hybrid light is also bursting with performance and features. The combination of proven T5 and modern LED technology produces enormously high light output, and the new smart Wi-Fi control enables full flexibility and control.

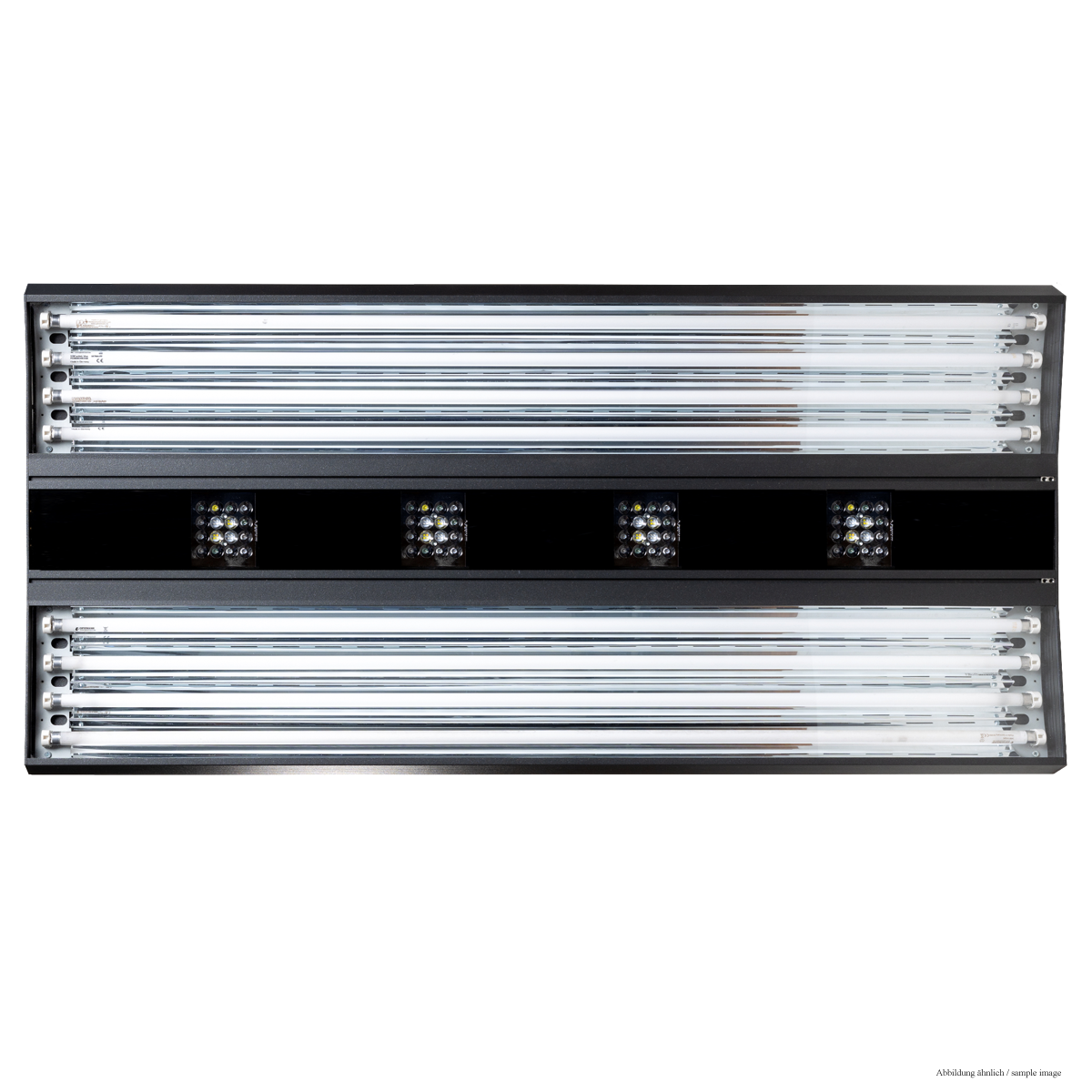

The combination of LED and T-5 lighting gives you the best of both worlds. The T-5 lamps offer the proven success for all reef aquariums with the full spectrum and area-wide illumination.
Technicla details
Model AURORA V8
900 mm AURORA V8
1200 mm AURORA V8
1500 mm
Number LED Clusters & LED 3 Cluster – 84 LED 4 Cluster – 112 LED 5 Cluster – 140 LED
Power LED 0 – 285 Watt 0 – 380 Watt 0 – 470 Watt
Number T5 lamps 6 8 8
Power T5 lamps 0 – 230 Watt 0 – 430 Watt 0 – 630 Watt
Maximum System performance 510 Watt 810 Watt 1100 Watt

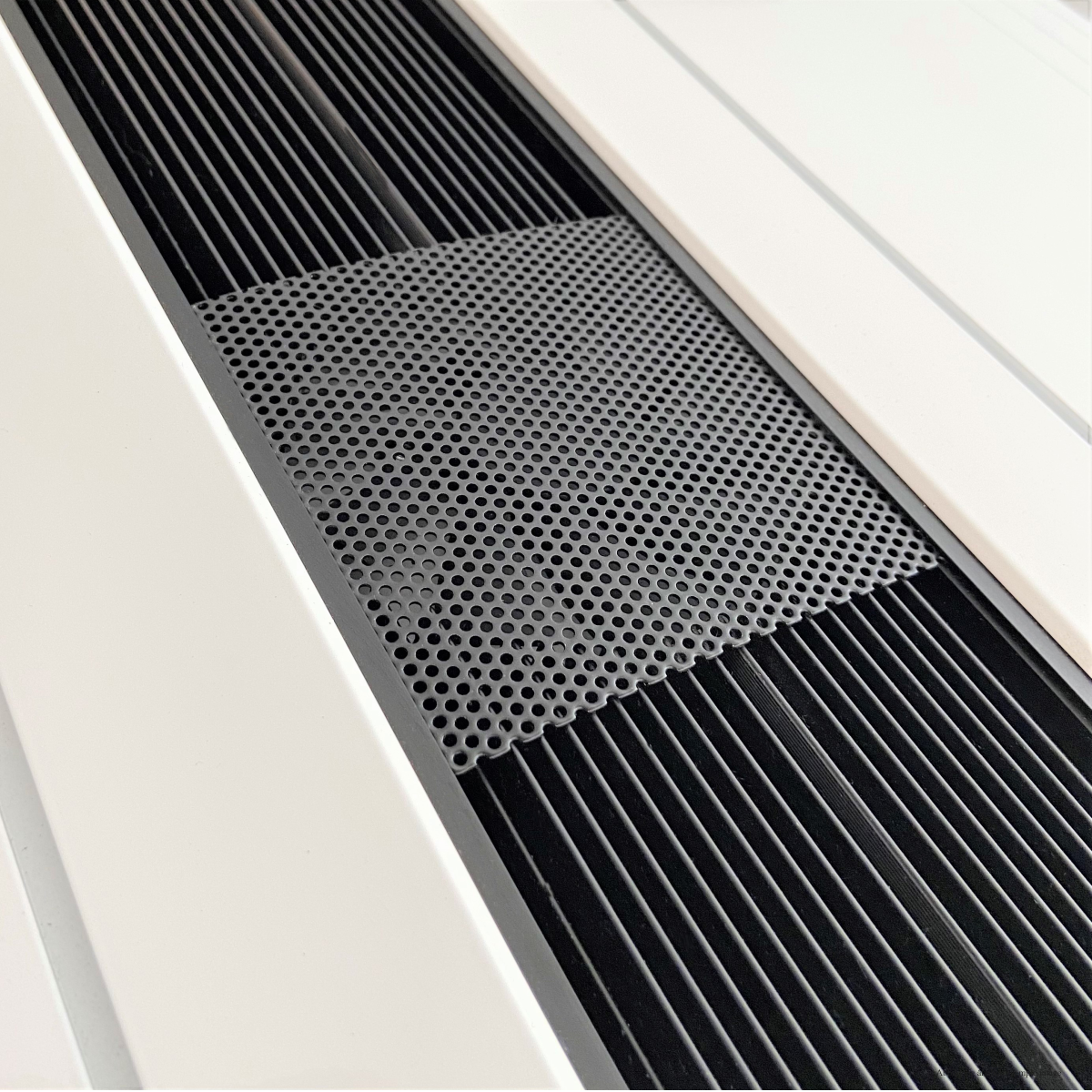

Cooling passive & active passive & active passive & active
Light control single reflectors single reflectors single reflectors
Control / Connectivity Wi-Fi / iOS & Android Wi-Fi / iOS & Android Wi-Fi / iOS & Android
*Delivery incl. GIESEMANN POWERCHROME T-5 fluorescent lamps of your choice
Dimensions
Details AURORA V8 AURORA
900 mm AURORA
1200 mm AURORA
1500 mm
Dimensions
lengthxwidthxheight 900 x 580 x 45 mm 1200 x 580 x 45 mm 1500 x 580 x 45 mm
Length 900 mm 1200 mm 1500 mm
Weight 9,1 kg 10,2 kg 16,4 kg
Illumination maximal
up to 130 x 85 cm
up to 160 x 85 cm
up to 190 x 85 cm
Illumination minimal
90 x 55 cm
120 x 55 cm
150 x 55 cm
Water level
up to 110 cm
up to 110 cm
up to 110 cm
Delivery
Version 900 mm 1200 mm 1500 mm
AURORA V8
1 1 1
Ceiling adjustment kit
incl.
incl.
incl.
External ballasts
1
(GS 220)
2
(RS 180)
2
(GS 220)
Power chords /EU-plug
2
3
3
Voltage
230V/50Hz
230V/50Hz
230V/50Hz
Manual
1
1
1
Shipping weight
10 kg
12 kg
16 kg
Achtung European version with European plugs for 230V/50Hz only.
For other countries an additional step-up power converter (110V -> 220V) may be required.
