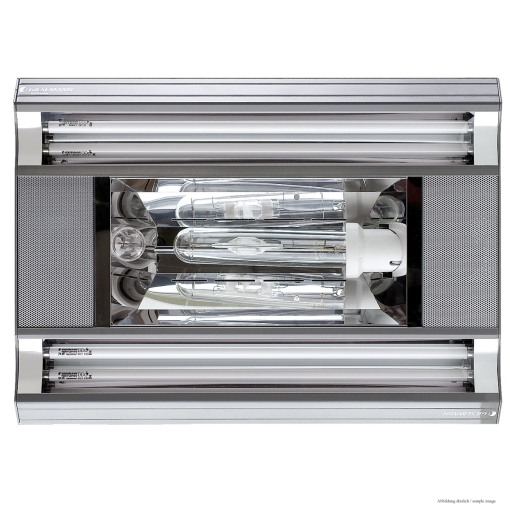

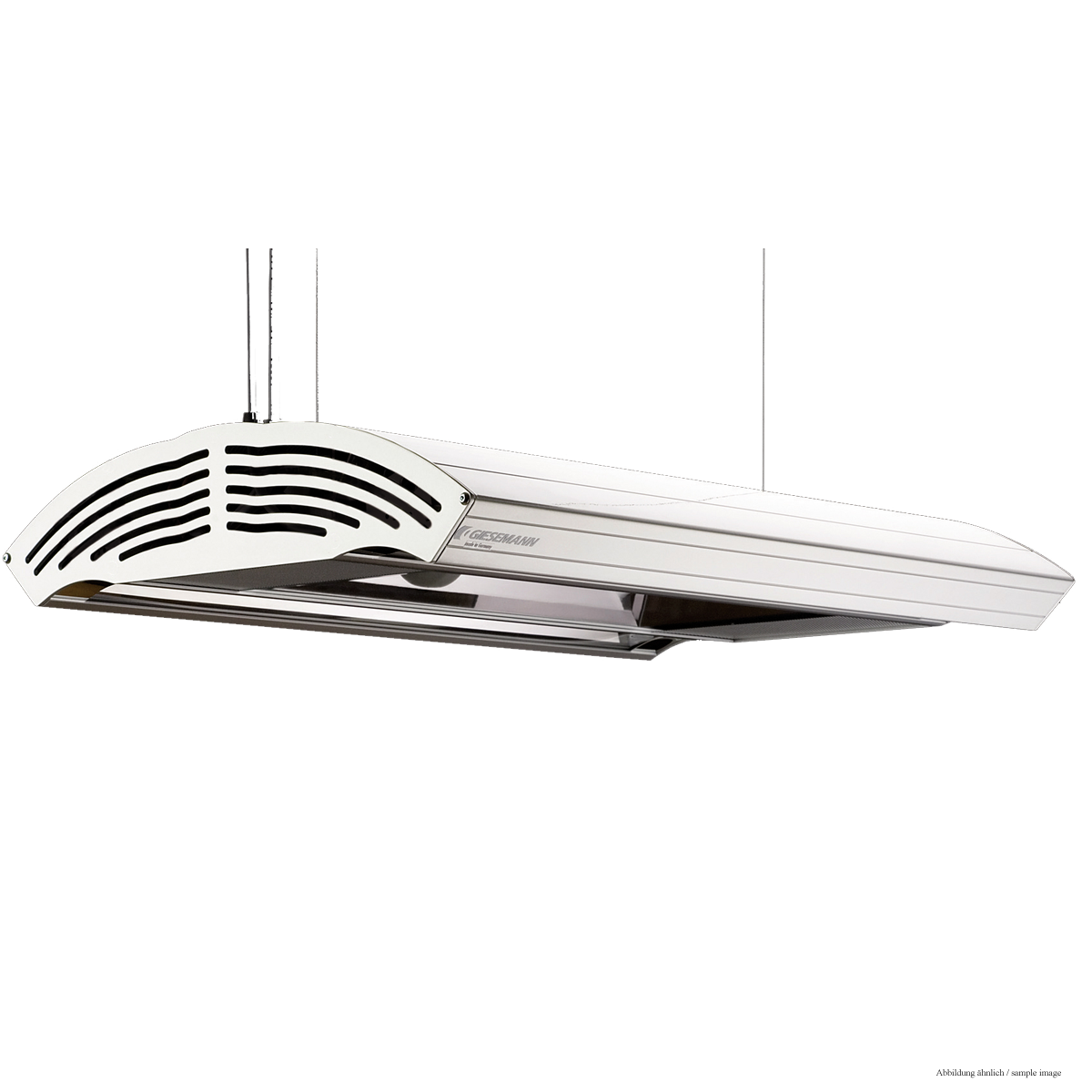

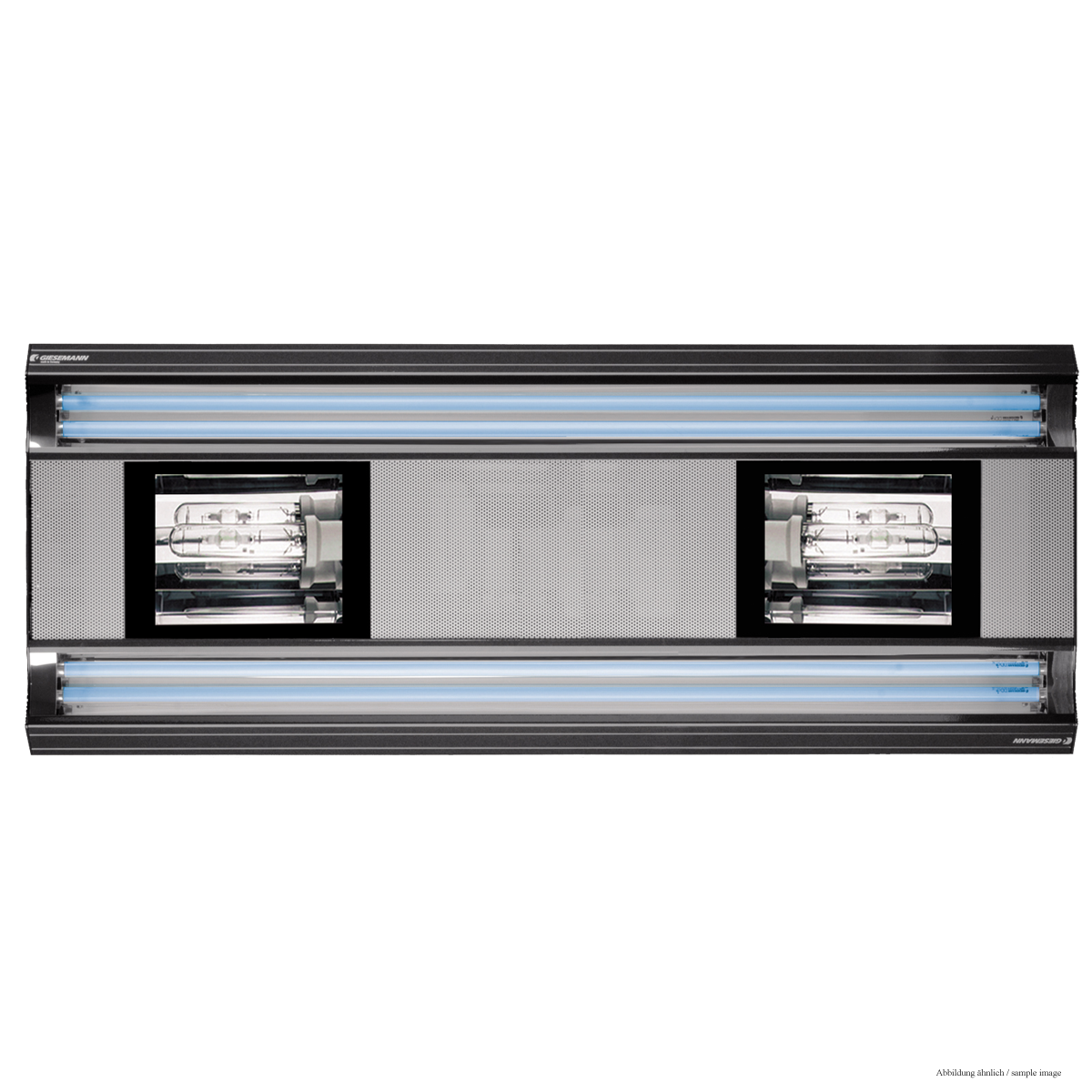

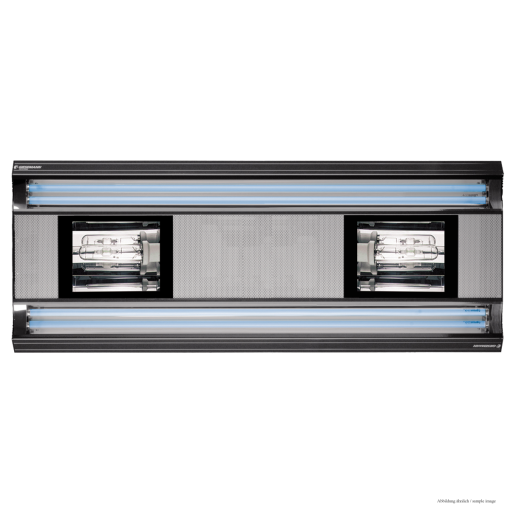

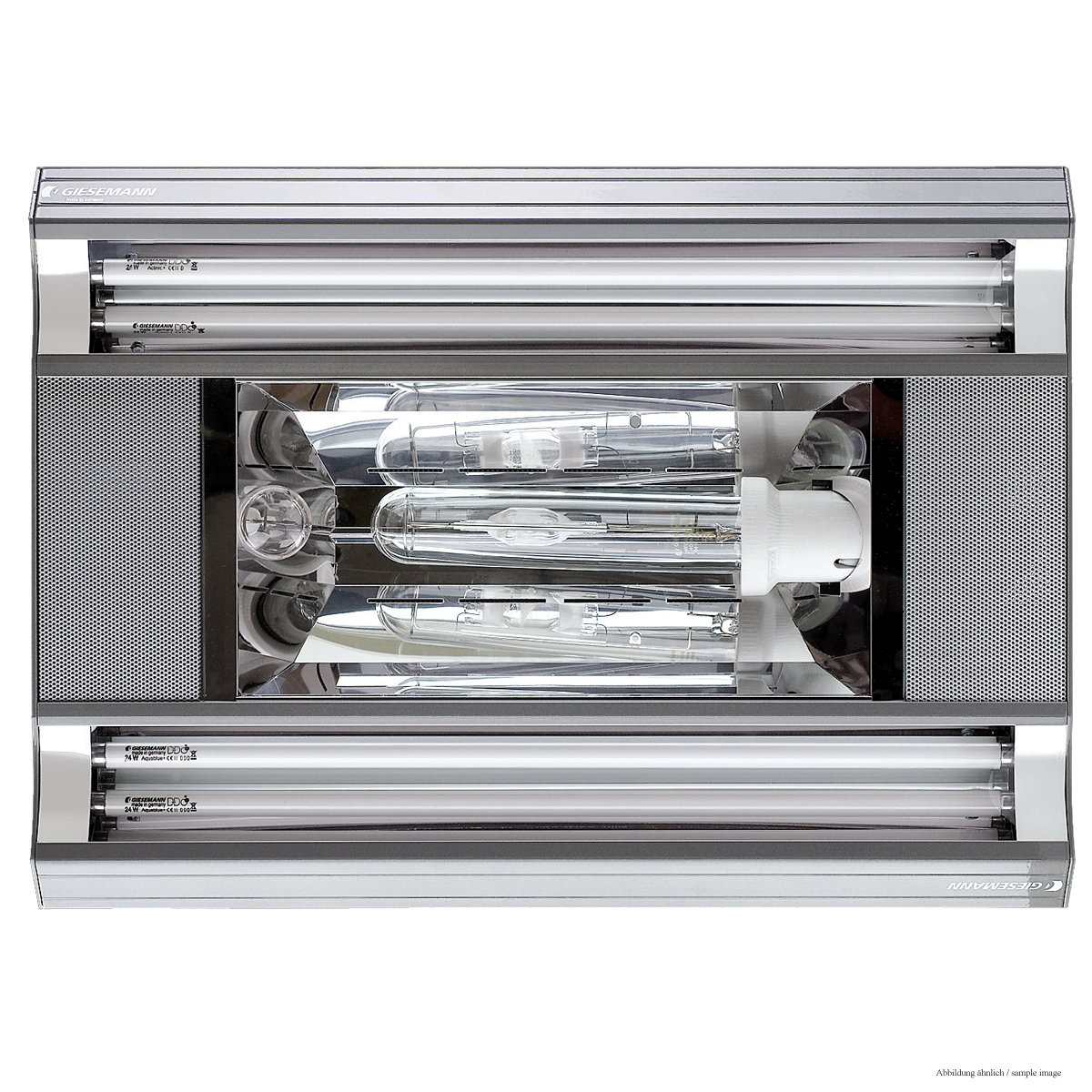

Product information “SPECTRA HQ/T5”
Pure high performance
Innovative HQ-5 technology
This high-power premium lighting system with a classic modern design, a dynamic profile, bold appearance is a brave reinterpretation of classic GIESEMANN design elements. SPECTRA is a new embodiment of the typical GIESEMANN design – a piece of technology ready for the limelight.
Overview technical details
Dimensions
SPECTRA Weight* Equipment Recommendation
marine/
tropic
600 x 437 x 99 mm
600 x 437 x 99 mm
6,0 kg
6,0 kg
1 x 250 W HQI – E40
4 x 24 W T-5
1 x 400 W HQI – E40
4 x 24 W T-5
100 x 100 x 70 cm
100 x 100 x 80 cm
110 x 100 x 95 cm
110 x 100 x 110 cm
1200 x 437 x 99 mm
1200 x 437 x 99 mm
11,0 kg
11,0 kg
2 x 250 W HQI – E40
4 x 54 W T-5
2 x 400 W HQI – E40
4 x 54 W T-5
170 x 100 x 70 cm
170 x 100 x 80 cm
170 x 100 x 95 cm
170 x 100 x 110 cm
1800 x 437 x 99 mm
1800 x 437 x 99 mm
16,5 kg
16,5 kg
3 x 250 W HQI – E40
4 x 80 W T-5
3 x 400 W HQI – E40
4 x 80 W T-5
250 x 100 x 70 cm
250 x 100 x 80 cm
250 x 100 x 95 cm
250 x 100 x 110 cm
*Weight of external ballast: 250 Watt : 4,5 kg; 400 Watt: 4,8 kg
Delivery
SPECTRA
SPECTRA 600 mm SPECTRA 1200 mm SPECTRA 1800 mm
HQI/T5 Hybrid light
1
1
1
Connection cords
with 5-pin plugs to external ballast
1
2
3
External ballasts*
with power cords/EU-plugs*
1
2
2
4
3
5
Ceiling adjustment
1
1
1
MEGACHROME HQI bulbs
1
2
3
POWERCHROME T5 lamps
4
4
4
Power
EU-Version: 220-240 Volt | 50 Hz
US-Version: 110V | 60 Hz
EU-Version: 220-240 Volt | 50 Hz
US-Version: 110V | 60 Hz
EU-Version: 220-240 Volt | 50 Hz
US-Version: 110V | 60 Hz
Manual
1
1
1
* US-Version is delivered without external ballasts and power cords – additional 110V|60Hz ballasts are needed!
Attention: EU-version for 230V|50Hz only. For other regions this light may be used with an additional step-up converter e.g. for 110V|60Hz.
US-Version for 110V|60Hz is delivered without external ballast.
Delivery already including bulbs and tubes
