Connection Cable for the Interface adapter for Red Dragon® 3 Speedy 50/60/80/100W pump with 10V connetion
to the Controller/Computer

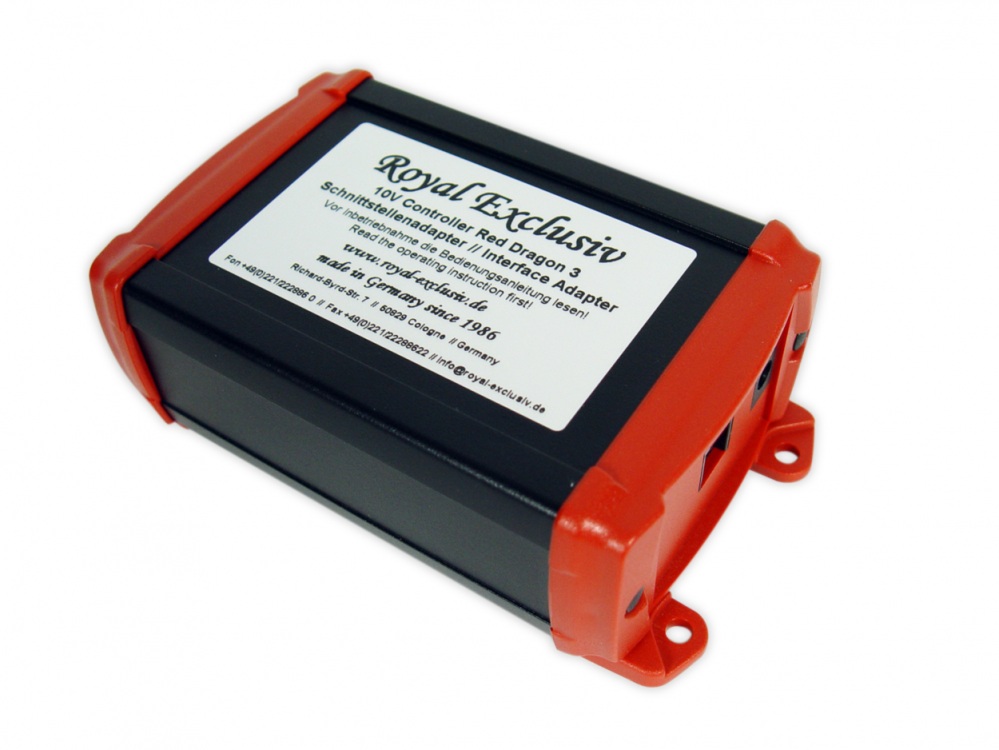

Technical data connection interface adapter Red Dragon® 3 Speedy pump :
for the connection of your Red Dragon® 3 (50W, 60W, 80W and 100W) pump with 10V connection to your aquarien-computer/contoller
contents of delivery:

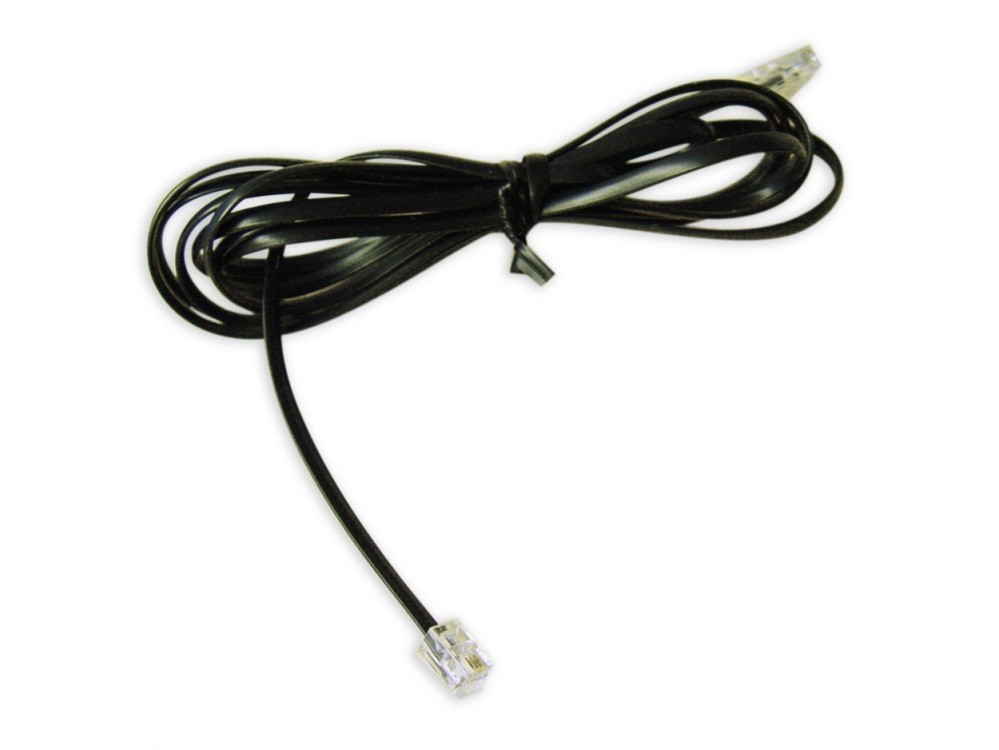

- 1x Connection-cable for Computer/Controller (approx. 2,0m)
Please choose your model – APEX or GHL
Use the RD3 pump as a circulation pump!
Watch, how it works! Link to the video.
This controller allows a connection to an aquarium computer (E.g. GHL) via a 0-10V interface.
Please choose your right connection-cable!

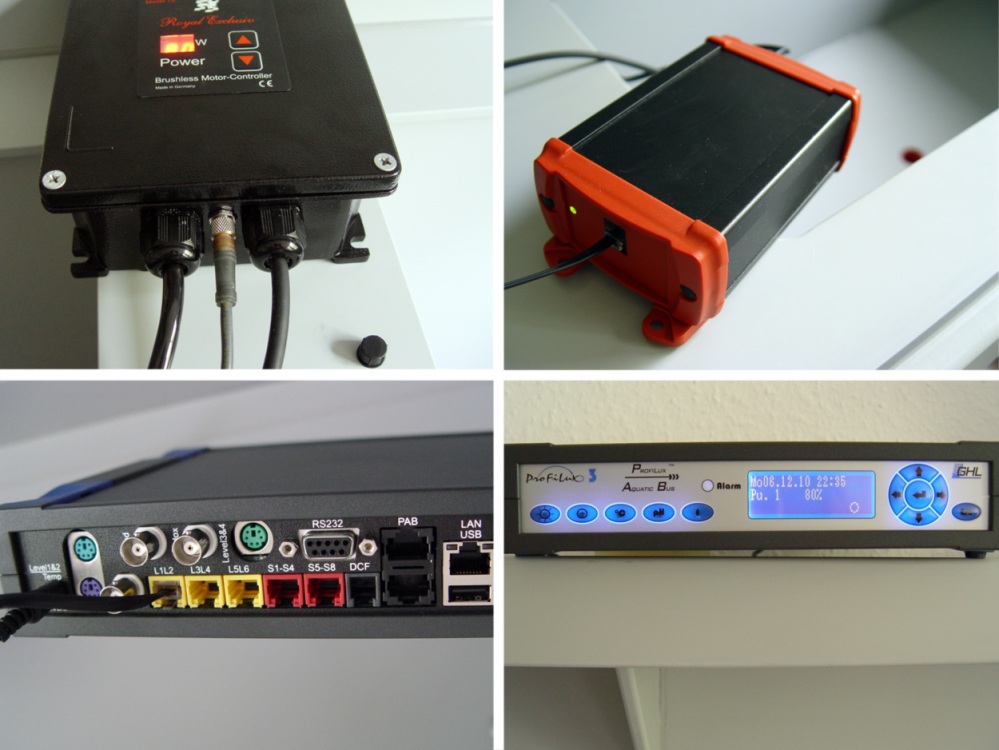

Tested so far following these computers:
GHL ProfiLux 3.1 + 4, from Neptune Systems the Apex Aqua Controller and with SciTronix littleblue.
The pulsing is in 5s intervals possible.
Functioning of the electronics:
Once a voltage > 0,5V to the 10V interface is, the interface adapter takes over controlling and the system and lock(disable) the buttons on the controller. Voltage will be < 0,5V normal controller operation and the buttons are again released. So can the interface adapter stay connected without performing a function.
If the Aquarium(tank)-computer voltage under 0,5V the 0-10V interface is shut down and the pump can be operated manually. From 0,5V, the interface will take over control of the scheme. In the area of 0,5V-0,8V the pump is switched off. 1V starts the pump at the lowest level (15W) and run. At an increase of 0,5V will increase the level, also. So 1V = 15W 1,5V = 20W 2V = 25W….. 5,0V = 50W, 6,0V = 60W, 7,5V = 80W.
At a higher input voltage remains the Speedycontroller to the maximum setting are available and no longer increases. The interface adapter behaves as if the corresponding would push the button.
