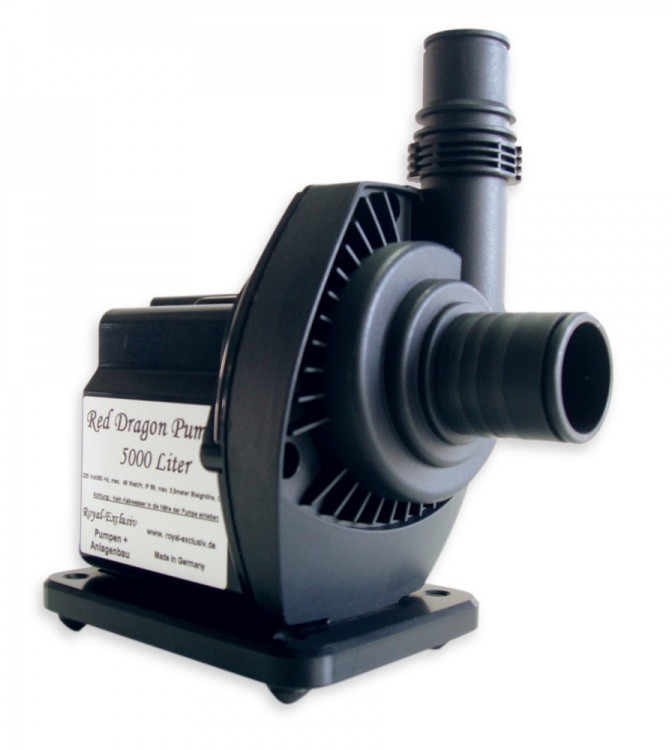

Mini Red Dragon Pump 5,0m³
Technical data Mini Red Dragon Pump 5,0m³:
60 Watt/h 2,5 mtr. pressure height
PVC grey
intake side 30 mm – pressure side 25 mm
operating voltage: 230 Volt 50 Hz (also in 110V/60Hz available)
Protection class: IP 68 (submersible pump)
Weight: 1,4 kg
Height of intake side: center 85 mm
Dimension: 90 mm wide / 170 mm length / ~ 190 mm height
Data_sheet_and_spare_parts.pdf//////////////////////////////////////////////////////////////////////////////////////////////////////////////////
Suitable slot pipes / split tubes for the protection of your pump
and
suitable decoupling/anti-vibration-sets, to make our silent pump more silent!
