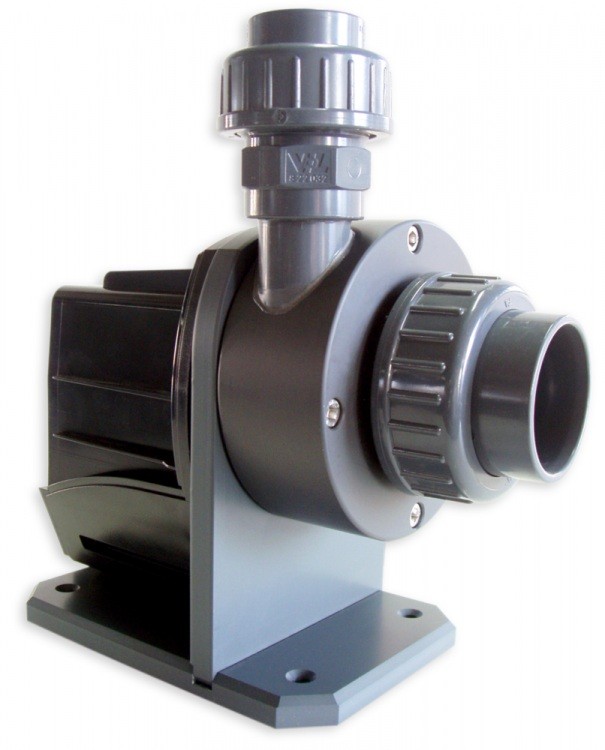

Red Dragon pump 10m³ VS08
Technical data Red-Dragon pump 10m³ VS08:
98 Watt/h 4,0 mtr. pressure height
PVC grey, with screw connection (inch or metric)
intake side 50 mm – pressure side 32 mm
Operating voltage: 230 Volt 50 Hz (also in 110V/60Hz available)
Protection class: IP 68 (submersible pump)
Weight: 5,0 kg
Height of intake side: center 135 mm
Dimension: 130 mm wide / 260 mm length / ~ 270 mm height
Data_sheet_and_spare_parts.pdf//////////////////////////////////////////////////////////////////////////////////////////////////////////////////
Suitable slot pipes / split tubes for the protection of your pump
and
suitable decoupling/anti-vibration-sets, to make our silent pump more silent!
