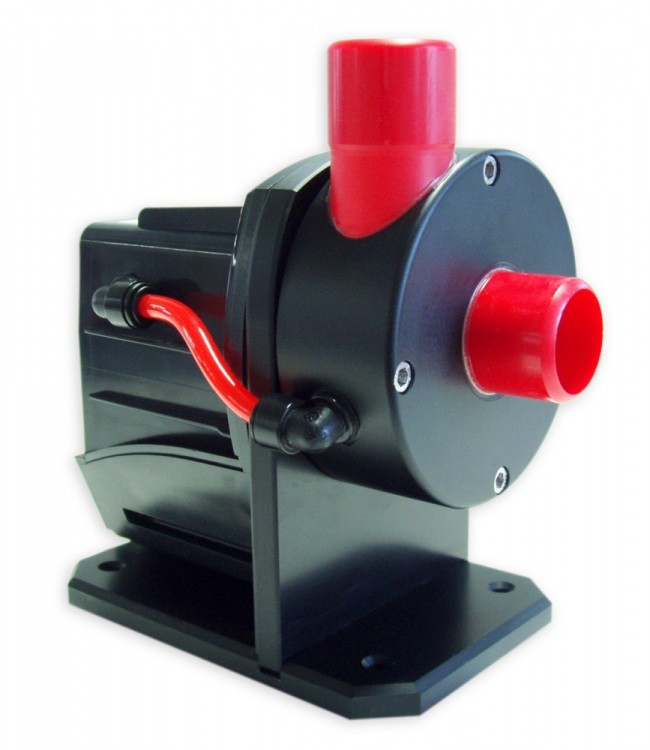

Red Dragon® Pump 12m³ AKB (anti-lime-bypass)
Technical data Red Dragon® Pump 12m³:
115 Watt/h 3,8 mtr. pressure height
PVC black, without screw connection
intake side 40 mm – pressure side 40 mm
Operating voltage: 230 Volt 50 Hz (also in 110V/60Hz available)
Protection class: IP 68 (submersible pump)
Weight: 4,5 kg

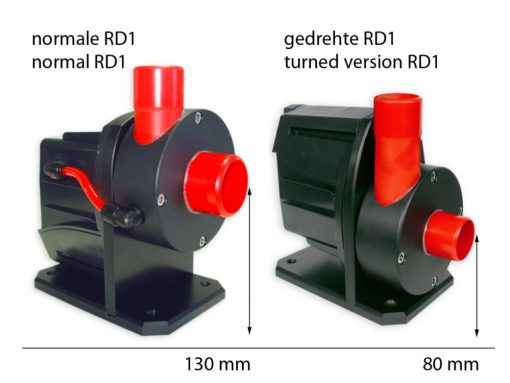

Height of intake side: center 130 mm
Dimension: 130 mm wide / 240 mm length / ~ 230 mm height
Data_sheet_and_spare_parts.pdf//////////////////////////////////////////////////////////////////////////////////////////////////////////////////
Suitable slot pipes / split tubes for the protection of your pump
and
suitable decoupling/anti-vibration-sets, to make our silent pump more silent!
