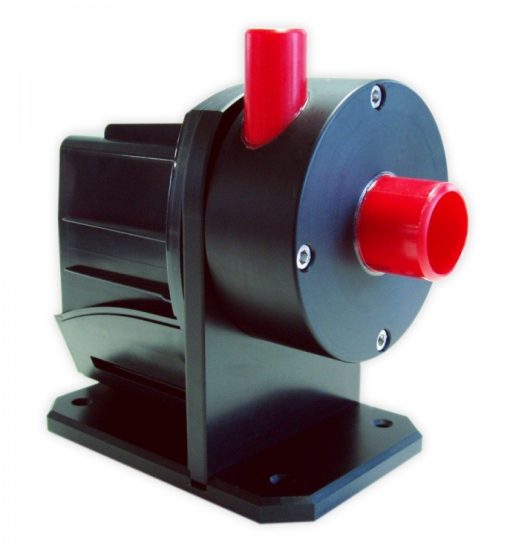

Red Dragon® Pump 6,5m³
Technical data Red Dragon® Pump 6,5m³:
65 Watt/h 4,0 mtr. pressure height
PVC black, without screw connection
intake side 40 mm – pressure side 25 mm
Operating voltage: 230 Volt 50 Hz (also in 110V/60Hz available)
Protection class: IP 68 (submersible pump)
Weight: 4,5 kg

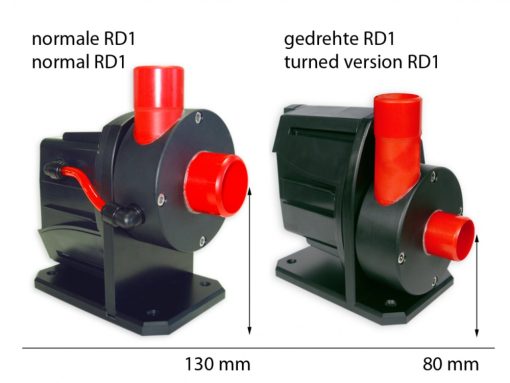

Height of intake side: center 130 mm
Dimension: 130 mm wide / 240 mm length / ~ 230 mm height
Data_sheet_and_spare_parts.pdf//////////////////////////////////////////////////////////////////////////////////////////////////////////////////
Suitable slot pipes / split tubes for the protection of your pump
and
suitable decoupling/anti-vibration-sets, to make our silent pump more silent!
