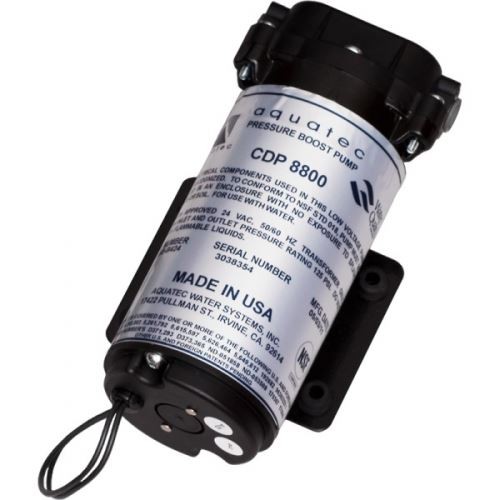

Manual Operated Booster Pump including the 230V Power Supply.
Increases line pressure to any of SpectraPure® Line Pressure fed RO or DI Systems
Add-on to existing RO, RO/DI Drinking Water Systems (DWST) or Permeate Pump Drinking Water Systems (DWS-PPT)
Boost incoming pressure by up to 60 psi for enhanced production and increased purity
Operating pressure up to 100 psi
Can be operated in any position Self pressure regulating; maintains constant output pressure regardless of inlet pressure
Whisper quiet
Advanced diaphragm technology and improved bearings extend pump life and lower noise
Sealed pump design protects from moisture and prolongs motor life
Adjustable pressure output
Distinguishing Features:
3/8″ fittings
Toughest, most durable pump on market
Adjustable max. outlet psi (regardless of feed pressure)
Expels trapped air (no more air locks)
Can be mounted w/pump head up or down
More flow at extremely low inlet pressures
EMI/RFI electronic noise suppression
New motor venting system to remove moisture
100% final performance tested
Key Operating Benefits:
Boosts pressure 40 to 120 psi (adjustable)
Used with membranes 50 to 100 GPD
15,000+ operating hours
Quiet – less than 52 DBA
Can run dry without damage
Self priming – 1.2 m lift
Low voltage (24V) for maximum safety
Corrosion resistant exterior
Adapter 3/8 to 1/4″ is available as a separate part
