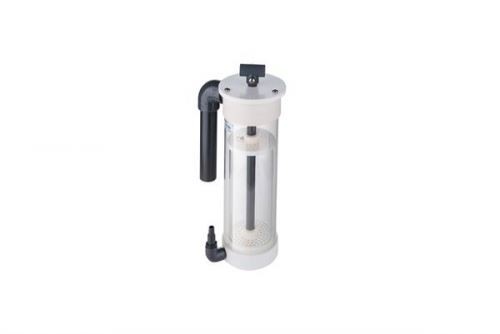

The Ultra Reef UZ range of zeolite reactor is a filter that allows the use zeolite as reported by different management methods.
The zeolite inside the reactor is crossed by water in the opposite direction to gravity and it can be shaken and mixed by acting on the upper lever.
PERFORMANCE
Tank size For aquariums up to 500 lit
Load capacity ~ 1.5 lit
DIMENSION
Base plate 15×19 cm (5.9×7.5″)
Height 45 cm (17.7″)
Piston extracted 53 cm (20.9″)
To be installed in sump
LOAD FLOW
Suggested pump flow ~ 500 – 1500 lit/h
Connection for hose size: 16 mm
Pump not included
PRODUCT FEATURES
Thanks to the experience gained in more than half a century in the fluid dynamics, in our product we propose the following solutions:
An efficient and essential product
Our zeolite reactors are an essential accessory for the management of zeolite in marine reef aquariums. Designed with dual-chamber structure
and vertical shaking, thanks to the robust structure they resist the heavy task of shaking the zeolite.
Double chamber design
The reactor is composed of two chambers, one external that perform overflow and one internal that contains the Zeolite. Unlike traditional single chamber reactors,
this design allows an easy shaking with no risk that zeolite may become jammed between the piston and the chamber,
streaking the pipe and jam the device. The inner chamber is equipped with a double diffusion plate to diffuse the flow of water,
ensuring a constant and homogeneous circulation.
Strong and durable structure
Most of the reactor is made with PVC components machined from solid and bolted together.
The absence of small moving parts gives the structure an excellent solidity.
The exhaust is adjustable to direct discharge flow in the most suitable point.
The cover is secured on the body by screws. In case of spills prevents the opening of the reactor
and allows a drive of the piston in total safety.
Innovative Easy-Flip gasket system
The external chamber is secured with a double “Easy-Flip” gasket, so it is possible to disassemble it completely
and rotate the position of the charge and drain line.
Versatile connection system
The load hose can be connected to the filter using the hose connection supplied.
Alternatively, the hose connection can be replaced with any commercial fitting with thread 1/2″ or 3/4″ (according to size).
Easy and thorough maintenance
Our product can be disassembled virtually in every single component. The generous thicknesses of the materials used
ensure excellent resistance during all maintenance, while small component reduction facilitates cleaning
and replacement of individual worn components.
DESIGN, QUALITY AND PERFORMANCE
During product development, we start from what the aquarist needs. The construction choices we use always have a practical logic
and often depart from a direct need, which could not be fully satisfied by products currently available on the market.
Made in Italy product
Our company was founded in 1957 and since then has produced hydraulic equipment and flow devices of the highest quality without compromise.
In our factory, we work with care and passion that has always characterized Italians companies.
Our success is based on customer satisfaction through efficient processing and delivery of high quality products at competitive price.
CNC machining of full blocks of PVC
We perform all of the internal development of our products in house, from design to production.
Our brand guarantees a deep and careful evaluation of the operation, both technically
and aesthetically, thanks to the CNC machining of full blocks of PVC
Research and development without reliance
Thanks to continuous research for innovations and new technologies to be used in manufacturing process
we are always at the forefront in development of our products. Flexibility
and speed of response to recent searches in the sector guarantee our products excellent performance.
Anticorrosion Titanium screws
Screws DIN7985 are made in Titanium G2, resistant to corrosion caused by seawater.
To give the best even in smaller components.
ISO 9001 Quality certification
The goal of business excellence can be achieved only if management and employees assume joint responsibility for quality,
standardized methods and instruments and processes are continuously improved. Our company is certified
and complies with the ISO 9001, the most commonly used international standard that provides a framework for Quality Management Systems.
