The heat exchangers of the Titan series are made of pure, salt water-resistant titanium. Titan coolers are suitable for use in fresh or salt water aquaria.

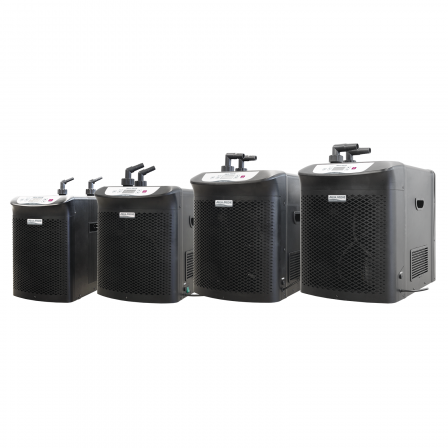

Titan coolers are available in 4 different sizes. You can maintain a temperature of 24 °C – 27 °C constant in a small aquarium up to an aquarium of 2,500 l. A digital temperature controller ensures that the adjusted temperature is exactly controlled.
The Aqua Medic cooling units of the Titan series are equipped with the environmentally friendly refrigerant R 134 A. All cooling units have a solid PVC/ABS housing in a timeless design so that the cooling units do not appear to be out of place beside an aquarium in the living room.
Features:
– Simple and convenient operation with a microcomputer-controlled system
– High efficiency and economy due to the rapidly falling water temperature
– The use of titanium heat exchangers ensures corrosion-free operation for a long
service life
– High level of protection for animals and plants due to permanent automatic
adjustment of the water temperature
– Easy installation, fittings supplied
– Solid housing in stylish design made of PVC/ABS
– Pump not included in shipment
Technical specifications
| Type | 200 | 600 | 1600 | 2200 |
| For aquaria up to (l) | 250 l | 750 l | 1,500 l | 2,500 l |
| Compressor power (HP) | 0.1 | 0.25 | 0.5 | 1 |
| Voltage | 220 – 240 V / 50 Hz | |||
| Power uptake (watts) app. | 160 | 345 | 480 | 550 |
| Cooling power (watts) app. | 200 | 600 | 800 | 1,600 |
| Recommended water flow (l/h) app. | 250-1,200 | 1,000-2,500 | 1,200-3,000 | 1,500-4,000 |
| Hose connections | 1/2″ or 5/8″ | 3/4″ | 3/4″ or 1″ | 1″ or 1 1/4″ |
| Hysteresis | 1° | |||
| Housing material | PVC/ABS | |||
| Heat exchanger | Titan | |||
| Cooling gas | R134a | |||
| Dimensions mm (l x w x h) app. (incl. connection) |
430x250x470 | 460x320x520 | 480x350x570 | 550x390x630 |
|
Noise development (db) app. |
51.9 | 48.4 | 47 | 64.3 |
| Weight app. | 13 | 19.9 | 22.7 | 30.2 |
