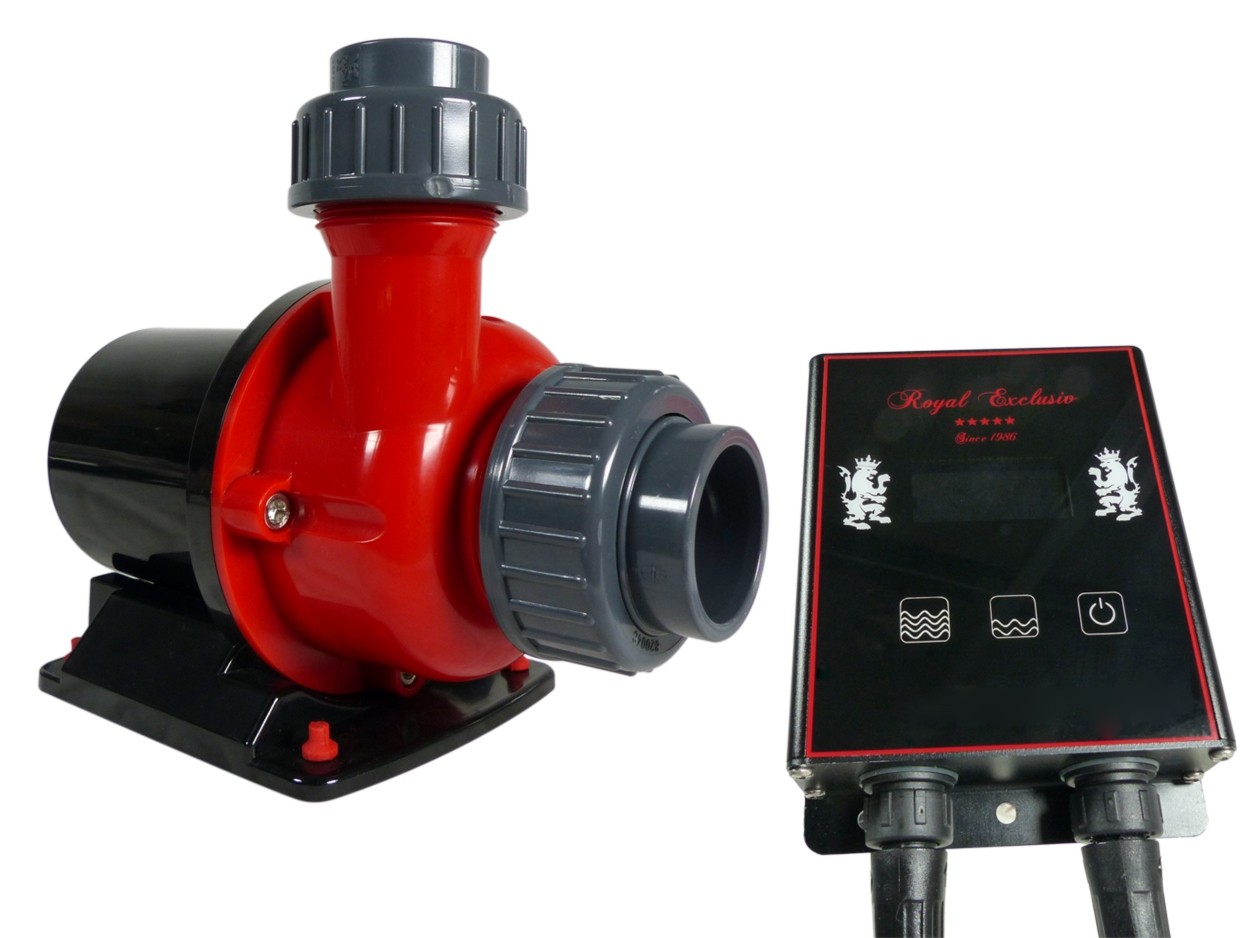

Red Dragon® 5 ECO pump 200 Watt / 13,0m³ / 36V
HIGHPRESSURE
Technical data Red Dragon® 5 ECO pump 200 Watt 13,0 m³:
200 Watt/h 8,5 mtr. pressure height
Speed adjustable Brushless DC pump
Watt-, Power consumption and Revolution per minute (rpm) – Display
Adjustable in 5-watt-steps from 5W up to 200W
intake side 40 mm (1.25″) – pressure side 32 mm (1″)
Operating voltage: 100-240 Volt 50-60 Hz (36V Technology)
Protection class pump: IP 68 control unit: IP 54
Weight pump without controller: 4,5 kg
Height of intake side: center 75 mm
Dimension pump: 130 mm wide / 240 mm length / ~ 190 mm height
Dimension control unit: 50 mm wide / 100 mm length / ~ 140 mm height
