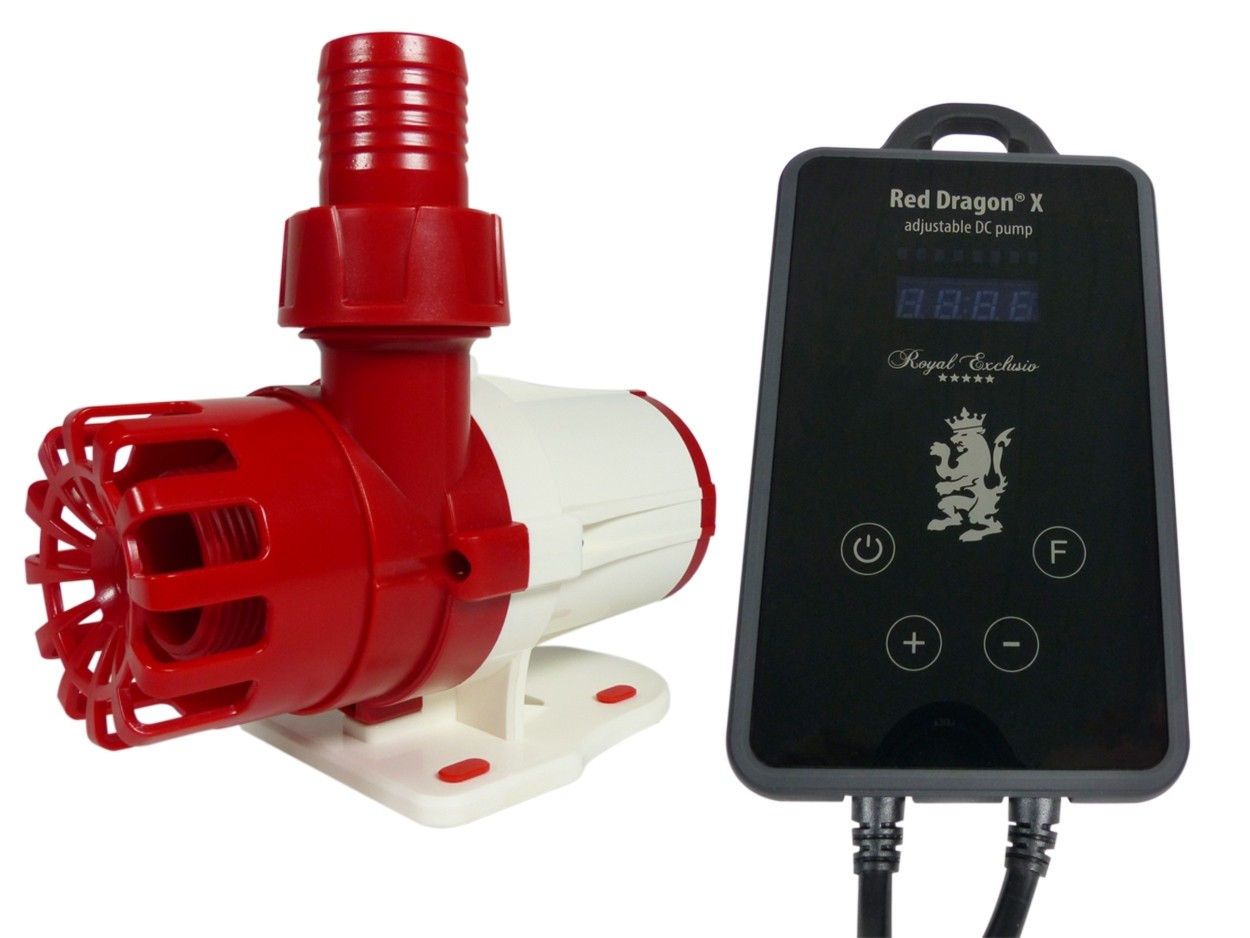

Red Dragon® X pump 85 Watt / 6,5m³ / 12V
Technical data Red Dragon® X pump 85 Watt 6,5 m³:
max. 85 Watt/h 5,5 mtr. pressure height
Speed adjustable Brushless DC pump
Revolution per minute (rpm) – Display
Adjustable in 8-steps from 8W up to 83W
intake side 32 mm (1″) – pressure side 32 mm (1″)
Operating voltage: 100-240 Volt 50-60 Hz (12V Technology)
Protection class pump: IP 68 control unit: IP 66
Weight pump without controller: 1,25 kg
Height of intake side: center 55 mm
Dimension pump: 90 mm wide / 170 (150 without inlet protection) mm length / ~ 130 (165 with socket) mm height
Dimension control unit: 20 mm wide / 90 mm length / ~ 170 mm height
